UV laser marking machine precise laser marking machine
UV PRECISE LASER MARKING SYSTEM
AHL - UV3/AHL - UV5/AHL - UV8/AHL - UV10
Application:
1.It is mainly used in the highly precise procesing , especially in drugs, cosmetic ,plastic bottles of polymer materials. It is of high performance, reliability and no pollution, which is better than traditional ink code marking.
2. Flexible PCB board marking, scribing, silicon crystal, blind hole processing.
3.LCD liquid crystal glass two-dimensional code marking , glassware surface drilling, metal surface layer marking , plastic keys , electronic components, gifts, communications equipment, building materials marking.
Product features:
UV laser marking machine adopts all-in-one overall design, which is easilyintegrate into industrial production processing. It can operate laser directlyby controlling interface (USB), no supplies, and products' depreciation costsare greatly reduced. By comparison, it has performances including highefficiency, long life and maintenance-free and so on, but the traditional laserdoes not.
Advantages:
1. High-definition: the resolution is measured by micron; it is two timesclearer than traditional machine.
2. Less power consumption: occupy traditional consumption of one and two-fifthsto one and ten.
3. High-speed: the speed is three to five times faster than traditionalmachine.
4. Stability: the stability of machine is much better than similar counterpart.
Specification:
Model | AHL - UV3 | AHL - UV5 | AHL - UV8 | AHL - UV10 |
Max. power | 3W | 5W | 8W | 10W |
Laser wavelength | 355±1nm | 355±1nm | 355±1nm | 355±1nm |
Pulse width | ＜25ns@30KHZ | ＜25ns@30KHZ | ＜25ns@30KHZ | ＜25ns@30KHZ |
Beam quality | ㎡＜1.3 | ㎡＜1.3 | ㎡＜1.3 | ㎡＜1.3 |
Beam diameter | 0. 7mm | 0. 7mm | 0. 7mm | 0. 7mm |
Laser repetition frequency | 10KHZ ~ 100KHZ | 10KHZ ~ 100KHZ | 10KHZ ~ 100KHZ | 10KHZ ~ 100KHZ |
Marking range | 100mm*100mm | 100mm*100mm | 100mm*100mm | 100mm*100mm |
Optional engraving range | 50mm*50mm/ 150mm*150mm | 50mm*50mm/ 150mm*150mm | 50mm*50mm/ 150mm*150mm | 50mm*50mm/ 150mm*150mm |
Engraving depth | ≤0.5mm | ≤0.5mm | ≤1.0mm | ≤1.0mm |
Engraving linear speed | ＞800 standard character/s | ＞800 standard character/s | ＞800 standard character/s | ＞800 standard character/s |
Min. linear width | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
Repetition accuracy | ± 0.002mm | ± 0.002mm | ± 0.002mm | ± 0.002mm |
Power consumption | ≤500W | ≤500W | ≤500W | ≤500W |
Electrical connection | 220V ± 10%/50HZ/4A | 220V ± 10%/50HZ/4A | 220V ± 10%/50HZ/4A | 220V±10%/50HZ/4A |
Laser source | UV | UV | UV | UV |
Galvanometer | QINLONG | QINLONG | QINLONG | QINLONG |
General life of laser | ＞100000 hrs | ＞100000 hrs | ＞100000 hrs | ＞100000 hrs |
Cooling style | water cooling | water cooling | water cooling | water cooling |

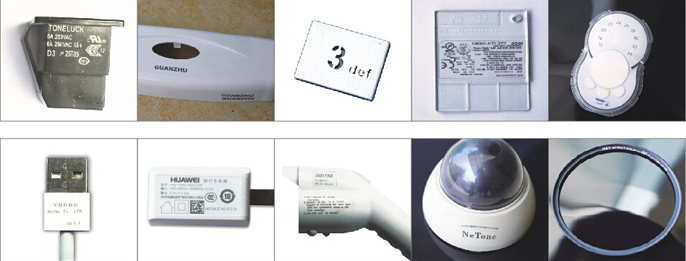

Marking sample shown:
