JEWELRY LASER SPOT WELDING MACHINE
AHL - W90/AHL - W220/AHL - W400
Laser spot welding machine is widely used in jewelryindustry, so also called jewelry spot welder or jewelry laser spot welder andso on.
Such laser spot welding machine is specialized for electronics industry andjewelry design industry, which can be used for filling holes of gold and silverjewelry, electronic components, as well as spot welding pinhole, and insertmouth.
It uses kinesiology design and produced with international top-gradeaccessories; it can be used to repair the holes on the jewelry, spottingblisters, welding inlay groove, so mainly applied in jewelry, electroniccomponents, communications, crafts and other industries.
Model A: power supply + chiller (outside cooling system)
Model B: portable structure (interior cooling system)

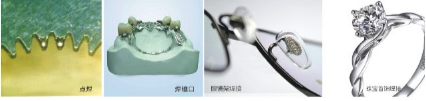

Welding samples:
Advantages:
1.The series of products are designedwith ergonomics and produced with the top international parts while areimproved through the introduction of advanced design techniques from Germany,so the integrated machine is more reliable and durable.
2.The product is compact, easy tooperate, with fine welding, stable equipment and low failure rate and otheradvantages.
3.The special microscope with crosshairsis offered to observe the system, and the high ¨C speed electronic filteringdevice is provided to protect the operator¡¯s eyes.
Specification:
Model | AHL - W90 | AHL - W220 | AHL - W400 |
Max. laser power | 90W | 220W | 400W |
Laser wavelength | 1064nm | 1064nm | 1064nm |
Max. energy per pulse | 70J | 90J | 110J |
Pulse width | 0.2~10ms | 0.2~10ms | |
Continuous welding frequency | 0.5~20HZ | 0.5~20HZ | 0.5~20HZ |
Range of adjustable facula size | 0.2~2mm | 0.2~2mm | |
Control system | micro - computer | micro - computer | micro - computer |
Power consumption | ¡Ü4KW | ¡Ü6KW | ¡Ü9KW |
Electrical connection | 220V¡À10%/50HZ /40A | 220V¡À10%/50HZ /40A | 220V¡À10%/50HZ /40A |
