AHL - AW200/AW400/AW600 Automatic laser welding machine
AHL - AW200/AW400/AW600 Automatic laser welding machine (2 ~ 4 axes)
Application:

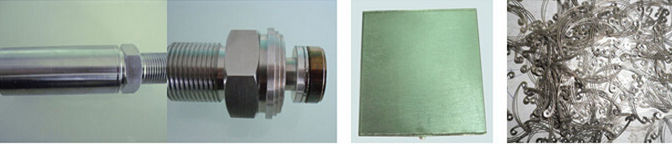

1.Wide application in laser welding among different steels, such as carbon steel, alloy steel, ordinary alloy steel, stainless steel, beryllium copper, copper, very hard alloy material of plastic mold, casting mold, stamping die, die casting mold, and welding among the same materials like stainless - low carbon steel, 416 stainless steel - 310 stainless steel, 347 stainless steel - HASTALLY nickel steel, nickel electrode - cold - forged steel, bimetal with different nickel content, titanium, nickel, tin, aluminum, chromium, niobium, gold, silver and their alloy products, steel and kovar alloys, as well as a variety of dissmilar metals welding between copper - nickel, nickel - titanium, copper - titanium, titanium - molybdenum, brass - copper, low carbon steel - copper, etc.
2.Widely applicable to cell phone batteries, jewelries, electronic components, circuit, sensors, watches, glasses, precise machinery, communication, handicrafts, high-end cabinet, elevator accessories, high-end furniture, stainless jug and so on.
Features:
Model | AHL - AW400 | AHL - AW600 |
Max. laser power | 400W | 600W |
Laser wavelengh | 1064nm | 1064nm |
Max energy per pulse | 110J | 130J |
Pulse width | 0.3-20ms | 0.3-20ms |
Continuous laser welding frequency | 1-100HZ | 1-100HZ |
Adjustable facula size | 0.2-2mm | 0.2-2mm |
Control system | PC(CNC2000) | PC(CNC2000) |
Power consumption | ¡Ü12KW | ¡Ü13KW |
Repetition accuracy | ¡À0.01mm | ¡À0.01mm |
Electrical connection | 380V¡À10%/50Hz/40A | 380V¡À10%/50Hz/40A |
Positioning | Red indicator | Red inditator |
Worktable itinerary | 500*500*200 | 1000*500*600 |
